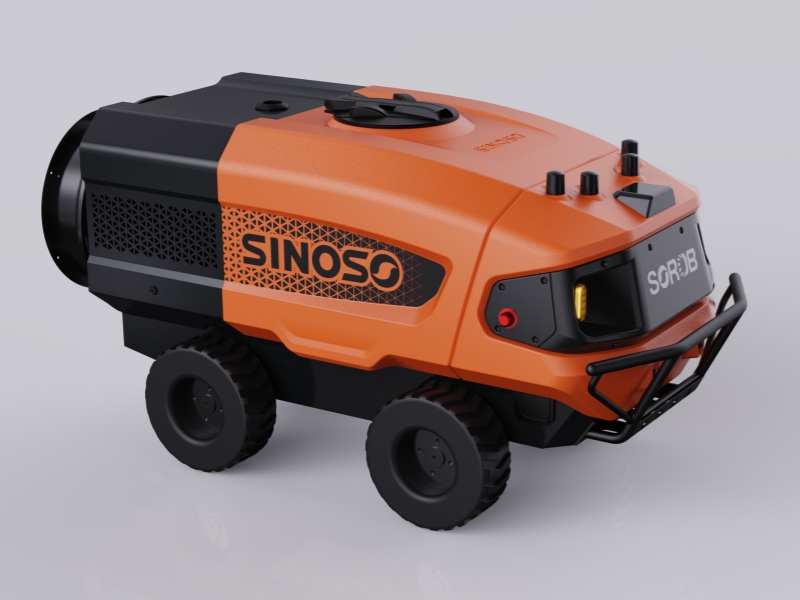

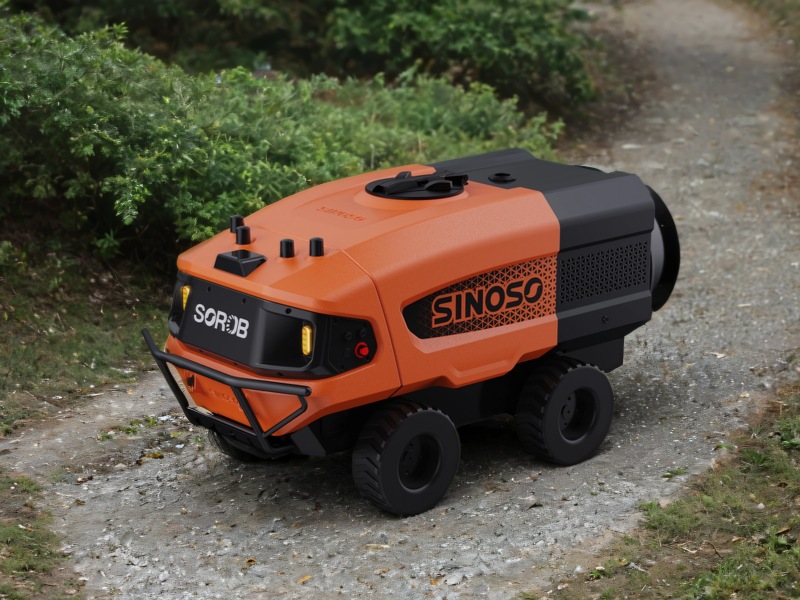

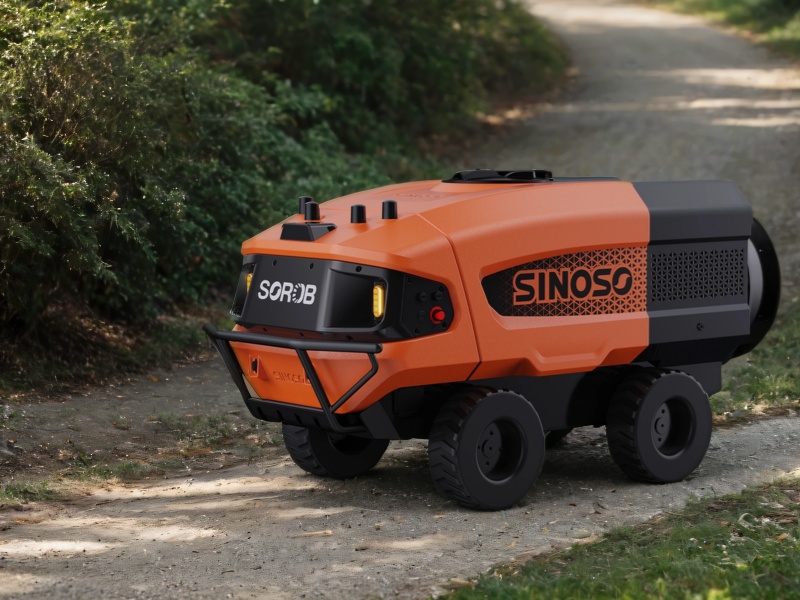

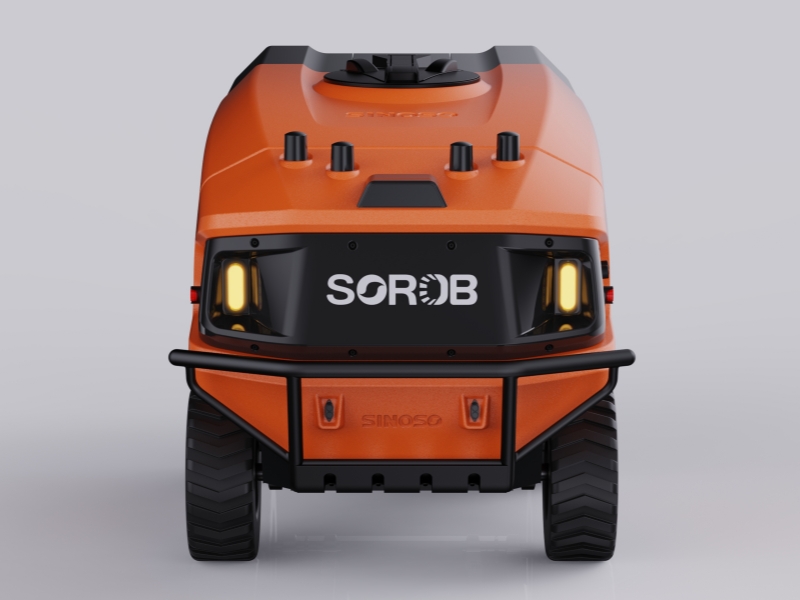

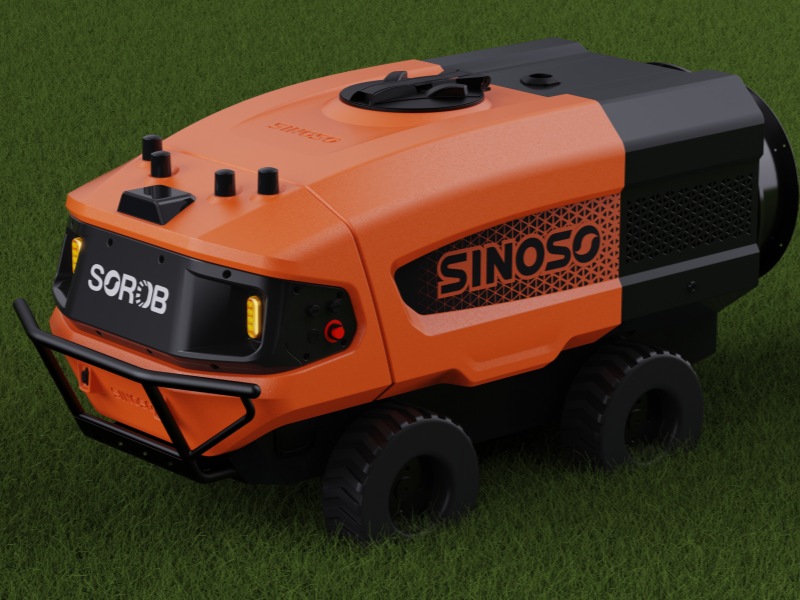

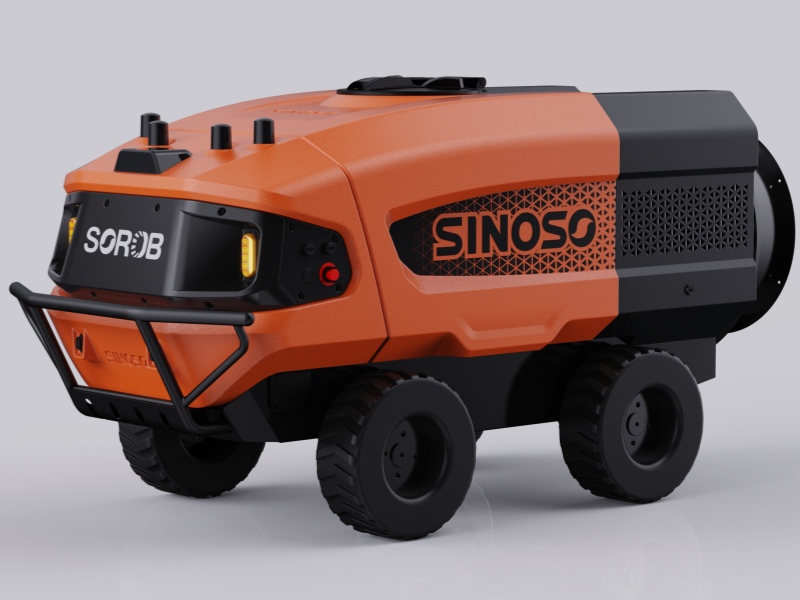

SOROB 300C Series Orchards Robot
The SOROB 300C series is a versatile, all-scenario intelligent plant protection robot, ideal for a wide variety of temperate, subtropical and tropical fruits like grapes, kiwifruit, dragon fruit, citrus, apples and mangoes. Specifically designed for precision agriculture, it perfectly fits 2-8m row spacing and works efficiently in greenhouses, mountain farms, and sightseeing orchards, making it an essential key tool for operational cost reduction and high-efficiency pest management in modern agriculture.
Available in advanced Autonomous Navigation and Smart Remote Control models, both systems utilize a high-endurance oil-electric hybrid power system for eco-friendly movement and robust, strong performance. Its precision air-assisted spraying technology penetrates dense crop canopies with extreme accuracy, greatly improving pesticide coverage, chemical utilization, and overall application efficiency.
CORE FUNCTIONS & SMART TECHNOLOGY
(Oil-Electric)
Equipped with a 48V/50Ah lithium battery, low-noise operation, and 7KW hybrid power, perfectly balancing environmental protection and high-torque efficiency.
Features 12 specialized nozzles with a powerful spray width of 16m x 8m, achieving an impressive operating efficiency of 15-30 mu/hour.
Designed with ≥200mm high ground clearance, capable of easily climbing 18° slopes and navigating various complex outdoor scenarios.
Includes a large 300L PE corrosion-resistant pesticide tank and a robust structural body, ideal for long-term sustainable outdoor operations.
Advanced accurate path planning technology, effectively eliminating missed or repeated spraying, significantly improving application precision.
● Autonomous Navigation Version (GNSS Centimeter-Level Navigation): Provides Centimeter-Level precise navigation and fully autonomous path following, ideal for automated operations in large-scale orchards while drastically reducing manual intervention.
● Intelligent Remote Control Version (Cost-Effective Solution): Highly focused on long-range remote control functionality and simple user operation, offering high cost-performance for small and medium-sized orchards.
TECHNICAL PARAMETERS & SPECIFICATIONS
| System Parameter & Configuration | SOROB 300C Navigation Version | SOROB 300C Remote Control Version |
|---|---|---|
| Drive & Traction Type | Autonomous Wheeled | Wheeled Drive |
| Overall Dimensions (mm) | 2080(L) * 950(W) * 1080(H) | |
| Chassis Ground Clearance | ≥ 200mm | |
| Total Machine Weight | 300kg | |
| Positioning & Navigation | GNSS / RTK | Standard Remote Control |
| Navigation Accuracy Level | Centimeter Level Precision | / |
| Pump Rated Pressure | 1.5MPa | |
| Total System Power | 7KW High Efficiency | |
| Spray Nozzle Quantity | 12 Specialized Nozzles | |
| Spraying Application Method | Precision Air-Assisted | |
| Spray Swath Parameters | Horizontal 16m / Vertical 8m | |
| Max Full-Load Climbing Grade | 18° Slope | |
| Max Operating Speed | 1.32m/s | |
| Operational Efficiency mu/h | 15-30 mu/h | |
| Pesticide Tank Capacity | 300L Large Volume | |
| Lithium Battery Capacity | 48V / 50Ah Li-ion | |
| Engine Power Mode | Oil-Electric Hybrid System | |
| Max Control Distance | ≥ 1km (Standard Environment) | |
| Autonomous Mobility Feature | Supported (●) | / |
